The features I look for in a technical diagram
I’ve seen so much variance on this in reviewing designs for software systems that it would be good to have a reference to point to of what I like to see and why I think it’s beneficial.
What diagram type should I chose? component or sequence?
The value a sequence diagram provides is to show both space and time, as concurrency of requests is very important in software protocol design.The value of a component diagram is showing the ontology of the system.
To combine them, we can simply number each arrow in a component diagram.
Detail the relationship cardinality
The icing on this cake is to collapse yet another dimension: “Cardinality” into the diagram using Crow’s foot notation. This allows us to show what the relationship of each “entity” in the diagram should be, e.g. 1-to-many but the inverse could be simply only-1 or zero-to-1.
Generate the diagrams from text
Here’s an example illustrating all this using my favourite diagramming tool PlantUML. (Entity Diagrams - PlantUML) It’s my favourite tool as you can quickly modify or maintain a complex diagram by making very small changes to a text file. Additionally it’s open-source meaning if you’re diagramming sensitive intellectual-property you don’t have to worry about it being stored by some other system.
I didn’t want to make the example trite or stupid so I’ve kept it generic, but this wouldn’t be an unusual diagram for some sort of web authentication flow or something.
@startuml
entity "entity A" as A
package foo {
class "entity B" as B
class "entity C" as C
}
entity "entity D" as D
A }o--> B: 1. Makes request to B for access
B --> C: 2. checks if this is ok?
C --> A: 3. asks A for information
A --> C: 4. A responds with request
C ||--> D: 5. C forwards info to D
@enduml

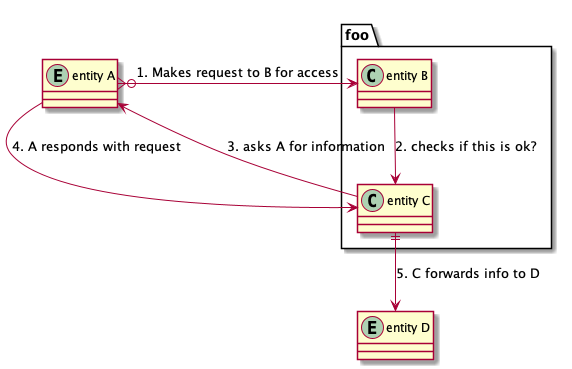

which results in a diagram like this
Walking through the nice features we have in the above diagram
- Time: thanks to the numbering we can follow the order of operation
- Hierarchy and ownership: entity B and C are in the same grouping “foo”
- Cardinality: there can be zero-or-more connections to B, and there is one-and-only-1 connection to D for C
There’s one thing I did not capture here which is a slight limitation on either PlantUML system or my knowledge of it. You can’t combine the crow-feet technique with an additional arrow on the connector to indicate the flow of data. The arrows in the above diagram are just a duplication of the numbering scheme.
